Accossato PZ004 Radial Brake Caliper Forged Monoblock 108mm Distance With Aluminium Pistons -Sintered

Description

The Accossato PZ004 is a high-performance radial brake caliper, forged from monobloc aluminum for extreme strength, light weight, and optimal heat dissipation. Designed for racing and demanding street use, it features four aluminum pistons and four individual pads per caliper for maximum braking performance and modulation.

Available in a range of anodized or painted finishes, this caliper not only enhances the look of your bike with a premium, custom aesthetic but also provides excellent resistance to corrosion and wear. Designed with 108 mm radial mounting, it fits most high-performance sport and superbikes. Manufactured and tested entirely in Italy, it meets the highest standards of modern braking technology.

---

Specifications

• Type: Radial brake caliper

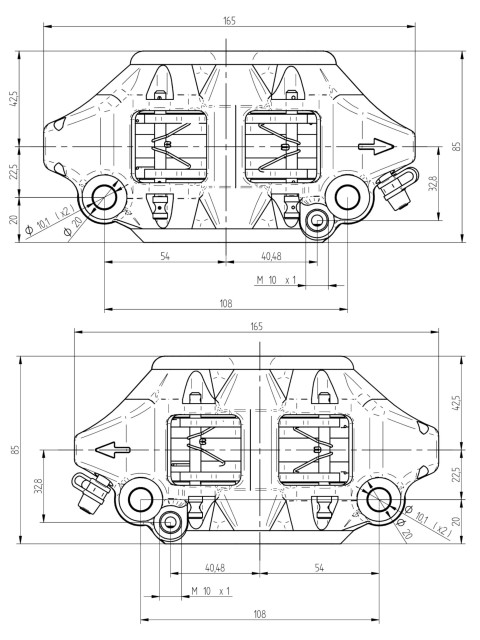

• Mounting Distance: 108 mm

• Offset: 22.5 mm

• Manufacturing: Forged monobloc aluminum, CNC-machined with 5-axis precision

• Pistons: 4 aluminum pistons (Ø34 mm)

• Pads per Caliper: 4 (AGPA134 – ST Sintered included)

• Dust Seals: Yes

• Finish: Anodized or painted in multiple color options.

• Use: Racing and street

---

Pad Compound Options (AGPA134)

• ST (Sintered – included): Reliable grip across all temperatures and conditions

• OR (Organic): Lower disc wear, ideal for extended pad life

• ZXC (Ceramic): Designed for high-temperature racing environments

• EV2: Maximum bite for aggressive racing performance

---

Key Features

• Designed with CAD-assisted geometry for optimal weight and rigidity

• CNC-machined from a single aluminum block for maximum strength and precision

• 4 individual pads per caliper for better heat distribution and pad wear management

• Dust seals included for durability in road conditions

• Available in anodized or painted finishes for both performance and style.

• Each caliper has a unique serial number for tracking and maintenance history

• Compatible with a wide range of racing or street motorcycles (108 mm bolt spacing)

---

Maintenance & Identification

Each caliper is engraved with a unique serial number for traceability. Optional maintenance includes:

• External and internal inspection

• Seal and dust seal replacement

• Static and dynamic pressure testing

• Full reassembly with verified tolerances

Only original parts should be used during maintenance or repair. Non-original components void inspection eligibility.

---

F.A.Q.

What should I do if the caliper has been in a crash?
Stop using it immediately. The caliper is a safety-critical part—send it for professional evaluation.

Can I repair the caliper?
Yes. Original replacement parts are available. Using non-original parts may compromise performance and void inspection.

What brake fluid should I use?
Use DOT 4 Accossato Racing Brake Fluid. DOT 5.1 may damage seals if left in the system after use.

How tight should I torque the bleed screw?
Tighten the bleed valve with a torque wrench to 8–10 Nm. Do not over-tighten by hand. After bleeding, clean the area with compressed air.

---

Spare Parts & Accessories

Description	Part Code



Additional information

Brand:	Accossato
Part Number	PZ004
Mounting Type	Radial
Mount Distance	108 mm
Offset	22.5 mm
Caliper Type	Forged Monobloc CNC-machined aluminium
Package Contents	Left Caliper, Right Caliper, Pair of Calipers
Finish	Black Anodized, Black Coated, Blue Anodized, Blue Coated, Red Anodized, Red Coated, Nickel plated
Pistons	4 aluminium pistons (Ø34 mm)
Pads Included	Yes – AGPA134 Sintered ST compound (4 pads per caliper)
Dust Seals	Yes
Rotor Compatibility Diameter	Diameter 300–330 mm, thickness 5–6 mm (typical for racing/sport applications)
Application	Universal fitment for radial 108 mm mounts – racing & street use
Made in	Italy
